TeamViewer Single Sign-On (SSO) aims to reduce user management efforts for large companies by connecting TeamViewer with identity providers and user directories.
📌Notes:
- The TeamViewer Single Sign-On is based on the domain which you set up. This means all TeamViewer accounts in your company or outside your company will be forwarded to the Identity Provider.
- The email address of the Microsoft Entra ID (formerly Azure AD) user must match the email address of the corresponding TeamViewer account.
- The TXT Entry has to be visible in public. You can check this by using a DNS TXT Lookup Tool.
This article applies to TeamViewer customers with an Enterprise/Tensor license.
Requirements
To use TeamViewer Single Sign-On, you need
- a TeamViewer version 13.2.1080 or newer
- a SAML 2.0 compatible identity provider (IdP)*
- a TeamViewer account to access the Management Console and add domains
- access to the DNS management of your domain to verify the domain ownership
- a TeamViewer Tensor license.
1. Create your custom identifier
This custom identifier is not stored by TeamViewer but is used for the initial configuration of SSO. It must not be changed at any point in time since this will break Single Sign-On and a new setup will be necessary.
Any random string can be used as a customer identifier. It is recommended not to use special characters in the custom identifier.
📌 Notes:
- You can use for example an online password generator or your internal password generator if your company has one.
- This string is later required for the configuration of the IdP.
2. Identity Provider Setup Microsoft Entra ID
To connect TeamViewer with Microsoft Entra ID as the identity provider, it is required to create an application for your Microsoft Entra ID. The steps to create and configure an enterprise application are described below:
1.) Open a Browser and login to "portal.azure.com" with an Account that has Global Admin Permissions.

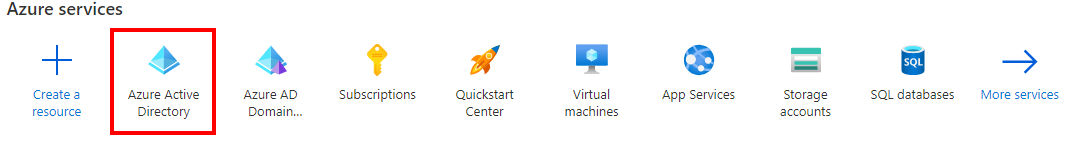

2.) You will see a Home Screen. Select there the Microsoft Service "Microsoft Entra ID"

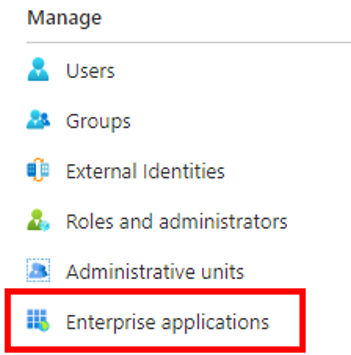

3.) After you have selected the Microsoft Service Microsoft Entra ID you will see an overview, please select on the left side under the section Manage the option Enterprise applications
4.) Now, the overview with all your Enterprise Applications that you have in your Microsoft Entra ID will open.

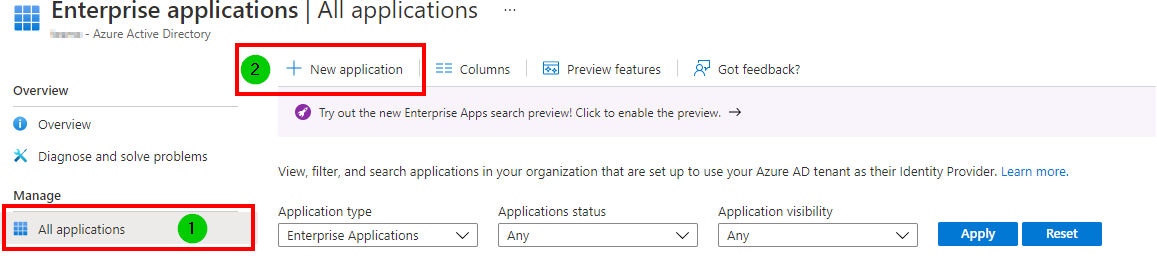

5.) Click All application (1) followed by
6.) Click New Application (2)

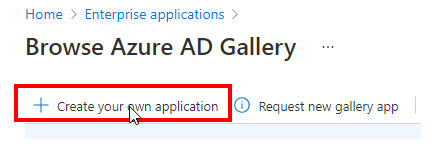

7.) In the next window, please click Create your own application

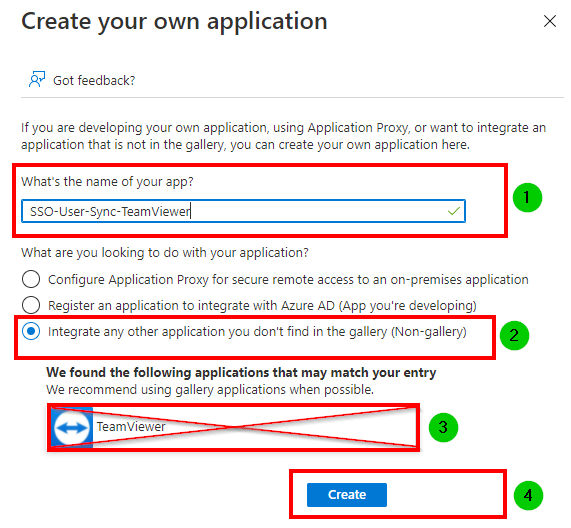

8.) Now you can create your own application:
(1) Enter a name for your application
(2) Select Integrate any other application you don't find in the gallery (Non-gallery)
(3) 📌Note: Please don't select the suggested TeamViewer App from Microsoft
(4) Click Create
9.) After you created the application, you will see the overview of this application.

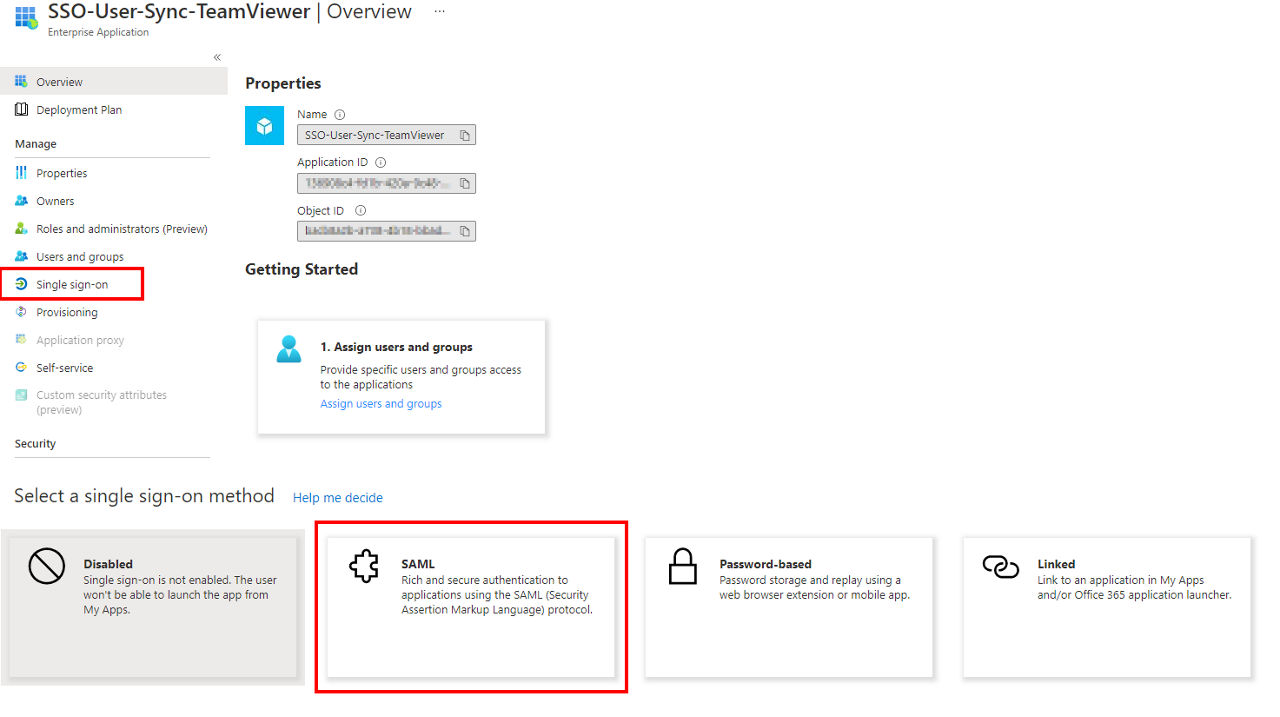

10.) Click under the Manage Section the Option Single sign-on and select the SAML Method

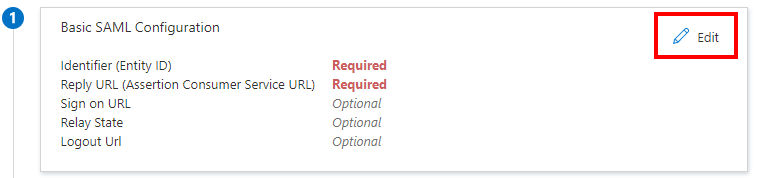

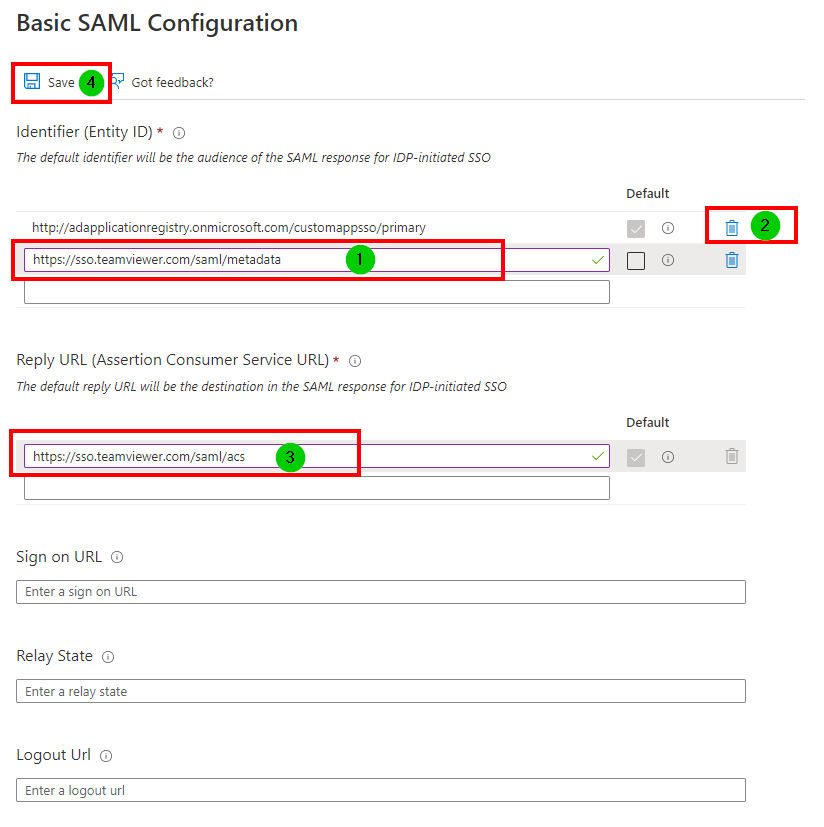

11.) Now you can Edit the SAML Configuration
(1) Enter the Entity ID ➜ https://sso.teamviewer.com/saml/metadata
(2) 📌 Note: Delete the Predefined URL from Microsoft
(3) Enter the Reply URL ➜ https://sso.teamviewer.com/saml/acs
(4) Click Save

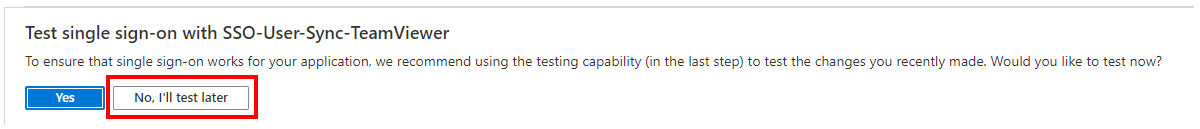

12.) After you save the first step, you get the question, whether you want to test the single sign-on. Click No, I'll test later
13.) In the next section you must edit the Attributes & Claims

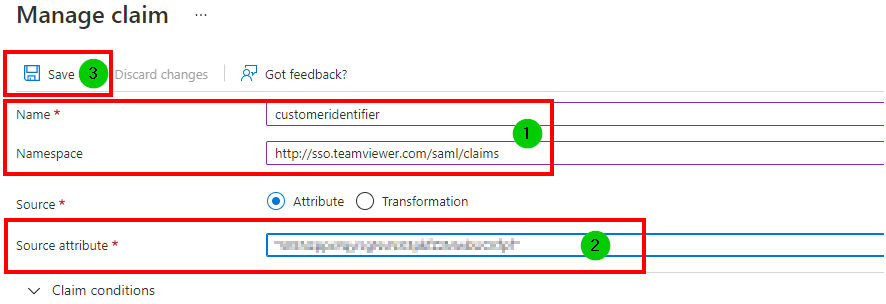

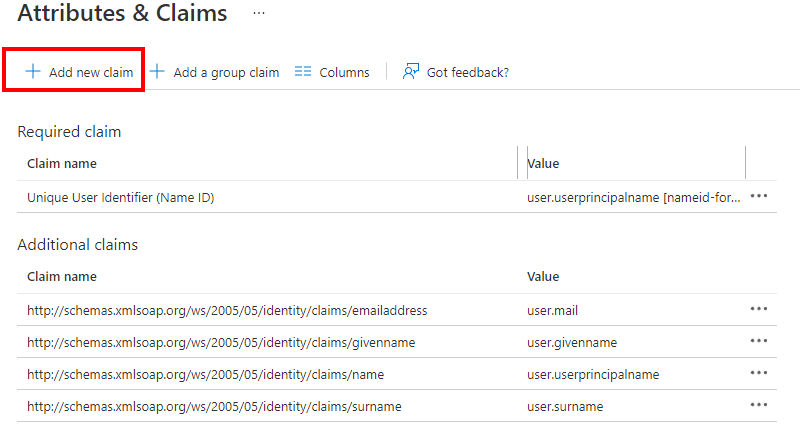

14.) Click Add new claim to add a new claim
(1) Enter as Name the value customeridentifier
(2) For the Namespace the value http://sso.teamviewer.com/saml/claims
(3) In the Source attribute enter the custom identifier, which you have created at the beginning
(4) Click Save

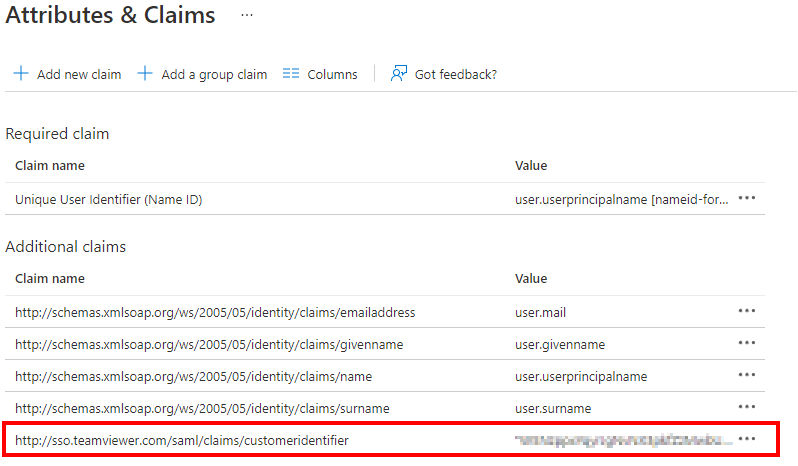

15.) You will see the new added claim in the Overview

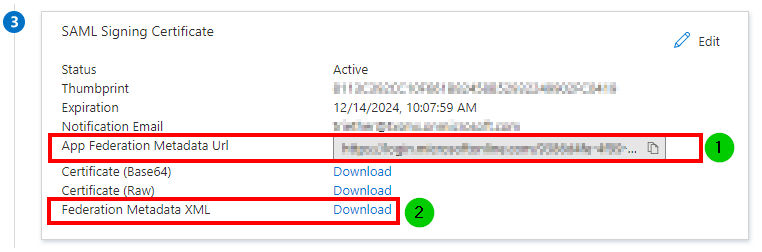

16.) In the next step, you download the Metadata XML File or you copy the Metadata URL
(1) You need one of them for the following steps in the TeamViewer Management Console.
17.) Before you finish the TeamViewer Management Console Setup, please add Groups / Users to the Application.
📌 Note: This is required so that users can successfully sign into their TeamViewer Accounts and the Groups / Users will be used for the AD SCIM Sync later.

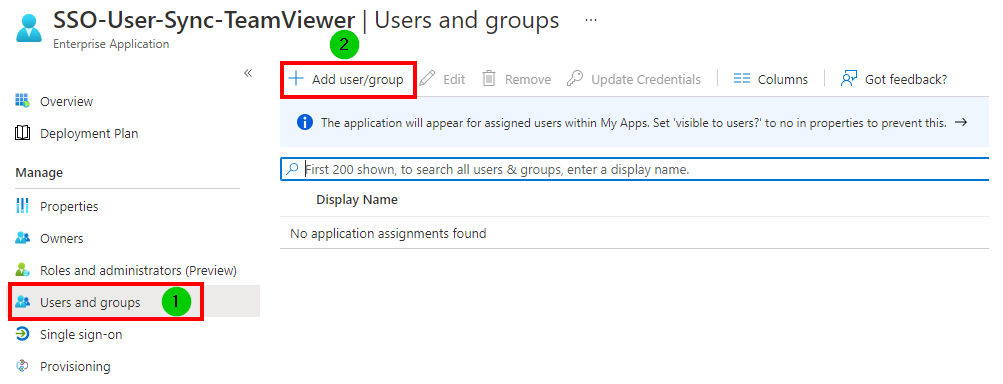

(1) Click in the Application on Users and groups
(2) Click Add user/group
3. TeamViewer Management Console (MCO) Configuration
1.) Open a web browser and sign with your licensed TeamViewer Account into the TeamViewer Management Console.
📌 Note: The TeamViewer Account User Permissions must be Company Administrator

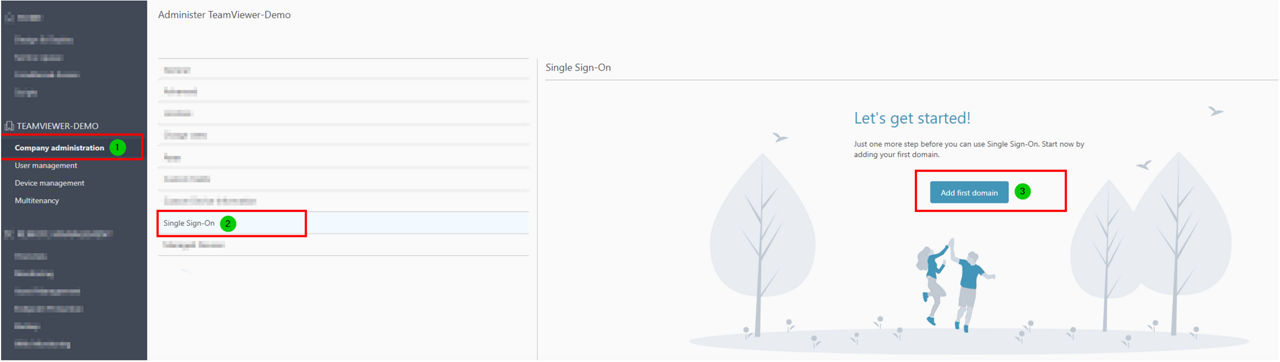

(1) Click Company administration
(2) Click Single Sign-On
(3) Click Add first domain"

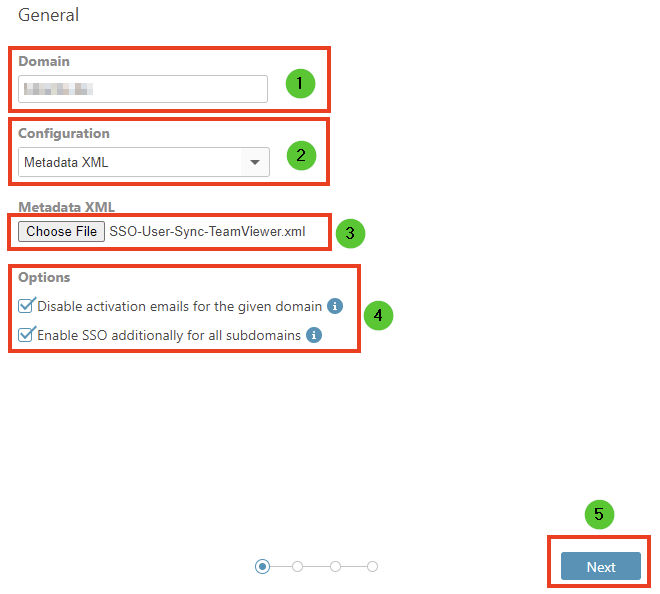

2.) In the next window you can enter the domain that you want to use for Single Sign-On.
📌 Note: Repeat this step if you want to use multiple domains for TeamViewer Single Sign-On. Use the same XML File or XML URL for the different Domains. The only requirement here, the domains are linked to the same Microsoft Entra ID Tenant.
(1) Enter your Domain
(2) Select the Configuration Type
(3) Upload the Metadata XML File
(4) Activate additional Options
📌 Note for Subdomains: This feature allows not only to include the domain (example.com) for the SSO login, but also all subdomains (such as sub.example.com)
📌 Note for Disable Activation Emails: SSO accounts that are created under this domain will or will not receive activation emails depending on this option. Newly created accounts will not receive activation emails if this option is enabled
(5) Click "Next"

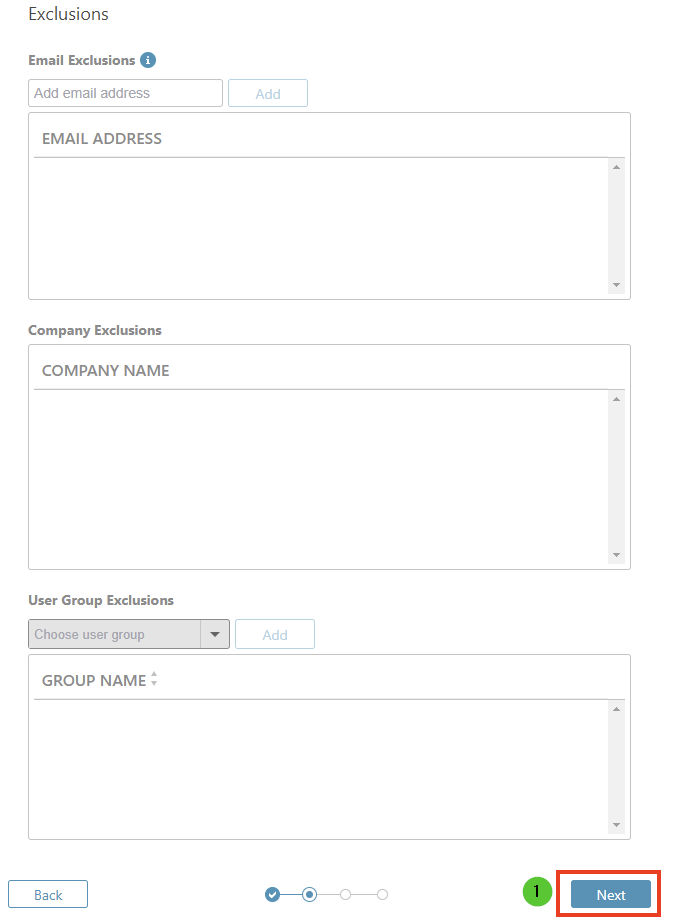

3.) In the next section, you can add accounts to the Single Sign-On Exclusion List. If you don't have something to add, click Next.
Important Note: It is highly recommended to add all domain owners to the exclusion list so that they can still log in if SSO needs a new configuration. Tests of the SSO login should be executed with a second account.
📌 Note for Email Exclusions: You can specify email addresses that will be excluded from Identity Provider Connection. These accounts can sign in to TeamViewer as usual without identity provider authentication. It is recommended to exclude the owner of a domain as a fallback, in case that the configuration is not correct or the identity provider is not available.

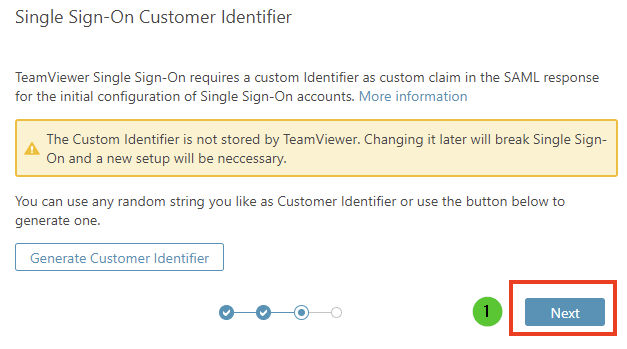

4.) This step (Single Sign-On Custom Identifier) can be skipped with the Click on Next as you have already created the Custom Identifier at the beginning
4. Domain Verification
📌 Note 1: You will see on this Screen the Information for your DNS Server Management. You need the information from the field Name / Host and the information from the field Value / Data
📌 Note 2: Copy from the field Value / Data, you need this information later.

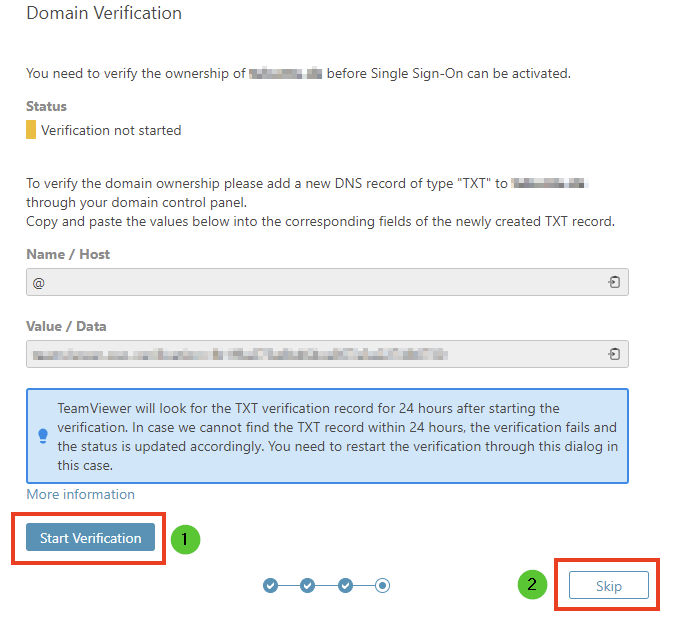

1.) On the domain verification window, do the following
(1) You can click Start Verification
(2.) You can click Skip
📌 Notes:
- If you follow this guide from start to the end, you click Skip in this Window
- You can come back to the verification page any time and see the values when the domain isn't verified
2.) Go back to TeamViewer Management Console.
📌 Note: The TeamViewer Account User Permissions must be "Company Administrator"

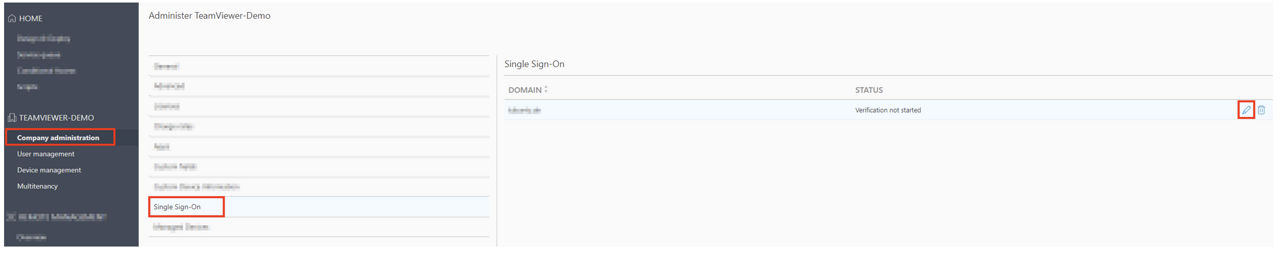

(1) Click Company administration
(2) Click Single Sign-On
(3) Click the Pen to edit the domain

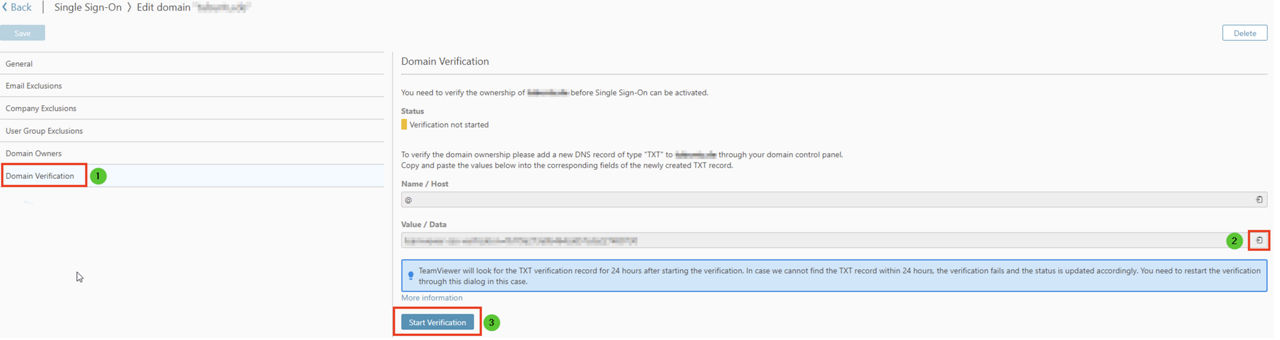

3.) Click Domain Verification
4.) Click Copy for the Value
5.) Click Start Verification after you completed the steps on your DNS Server Management
📌 Notes:
- The TXT Entry has to be visible in public. You can check this by using a DNS TXT Lookup Tool. Google will help you in this case.
- TeamViewer will look for the TXT verification record for 24 hours after starting the verification. In case we cannot find the TXT record within 24 hours, the verification fails and the status is updated accordingly. You need to restart the verification through this dialog in this case.

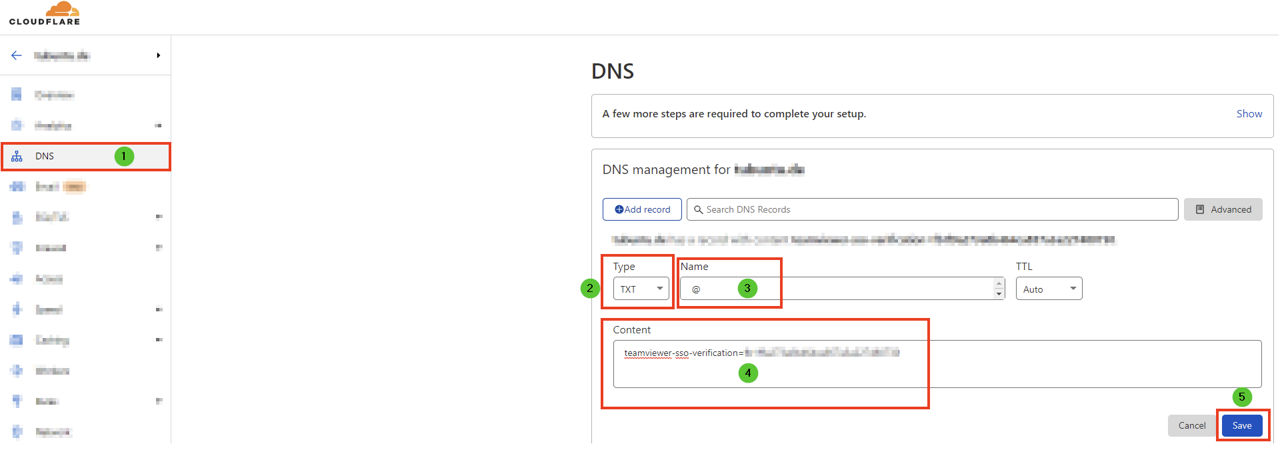

📌 Note: The following shows the DNS Server Management for a Domain which is managed by Cloudflare. Your DNS Server Management might look different!
After you have signed in to the Cloudflare Dashboard, select the domain.
(1) Click DNS and click Add record
(2) Select as Type ➜ TXT
(3) Enter for the Name ➜ @
(4) Enter for Content ➜ The TeamViewer SSO Verification Value from the Step above
(5) Click Save
TeamViewer Client Configuration
TeamViewer is compatible with Single Sign-On starting from version 13.2.1080.
Previous versions do not support Single Sign-On and can not redirect users to your identity provider during the login. The client configuration is optional but allows changing the used browser for the SSO login of the IdP.
The TeamViewer client will use an embedded browser for the identity provider authentication by default. If you prefer to use the default browser of the operating system, you can change this behavior:
Windows:
HKEY_CURRENT_USER\Software\TeamViewer\SsoUseEmbeddedBrowser = 0 (DWORD)
macOS:
defaults write com.teamviewer.teamviewer.preferences SsoUseEmbeddedBrowser -int 0
📌Note: You need to restart the TeamViewer client after creating or changing the registry.
